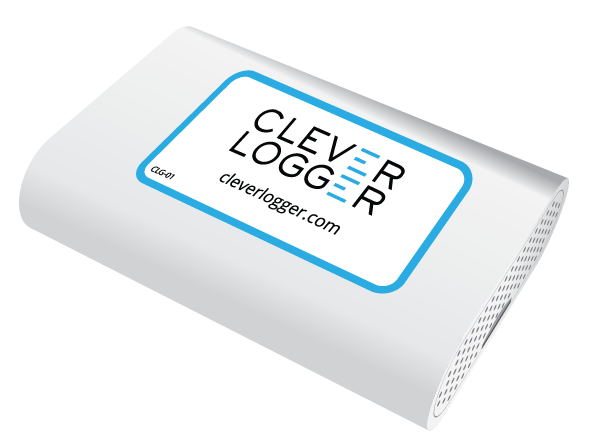

Clever Logger Gateway Model CLG-01
- Model CLG-01
- WiFi or LAN connection
- Mains or PoE (using a PoE Injector)
Product Description:
The Clever Logger Gateway model CLG-01 is the link between your loggers and the internet. Every Clever Logger setup requires at least one gateway.
Easily connect the gateway to your local network with an Ethernet cable or with Wi‑Fi. Use any internet device (PC, Mac, tablet, phone) to log into the Clever Logger dashboard. On the dashboard you can add gateways, configure your loggers, set up your reports and view live temperature data.
Install the free Clever Logger app on your phone and manage everything from wherever you are. You can even get temperature alerts sent straight to your phone!
A single gateway can talk to multiple loggers at once, so even if you have more than one fridge, you may only need one gateway. Loggers and gateways communicate with each other wirelessly and there is a limit to how far apart they can be. If your loggers are a long way away from each other, you may need to have more than one gateway.
As a general rule, if the loggers are all in the same room, a single gateway will communicate with all of them.
Technical Specifications:
|
Part No
|
CLG-01
|
|
Dimensions
|
90mm x 70mm x 25mm
|
|
Power
|
240V mains adaptor (supplied).
POE (Power Over Ethernet) available. Please contact us for more information. |
|
Weight
|
45g
|
|
Internet Connection
|
Ethernet (wired) and Wi‑Fi
Please see this page for networking requirements |
|
WiFi
|
Frequencies: 2.4GHz and 5GHz 802.11.b/g/n/ac.
Security: WPA and WPA2 (WEP, WPA-Enterprise, and hidden networks are not currently supported. Support coming soon) |
|
Operating Temperature
|
0°C to 50°C
|
|
Compliance
|
RoHS, RCM, FCC, etc. Documents available on request
|
